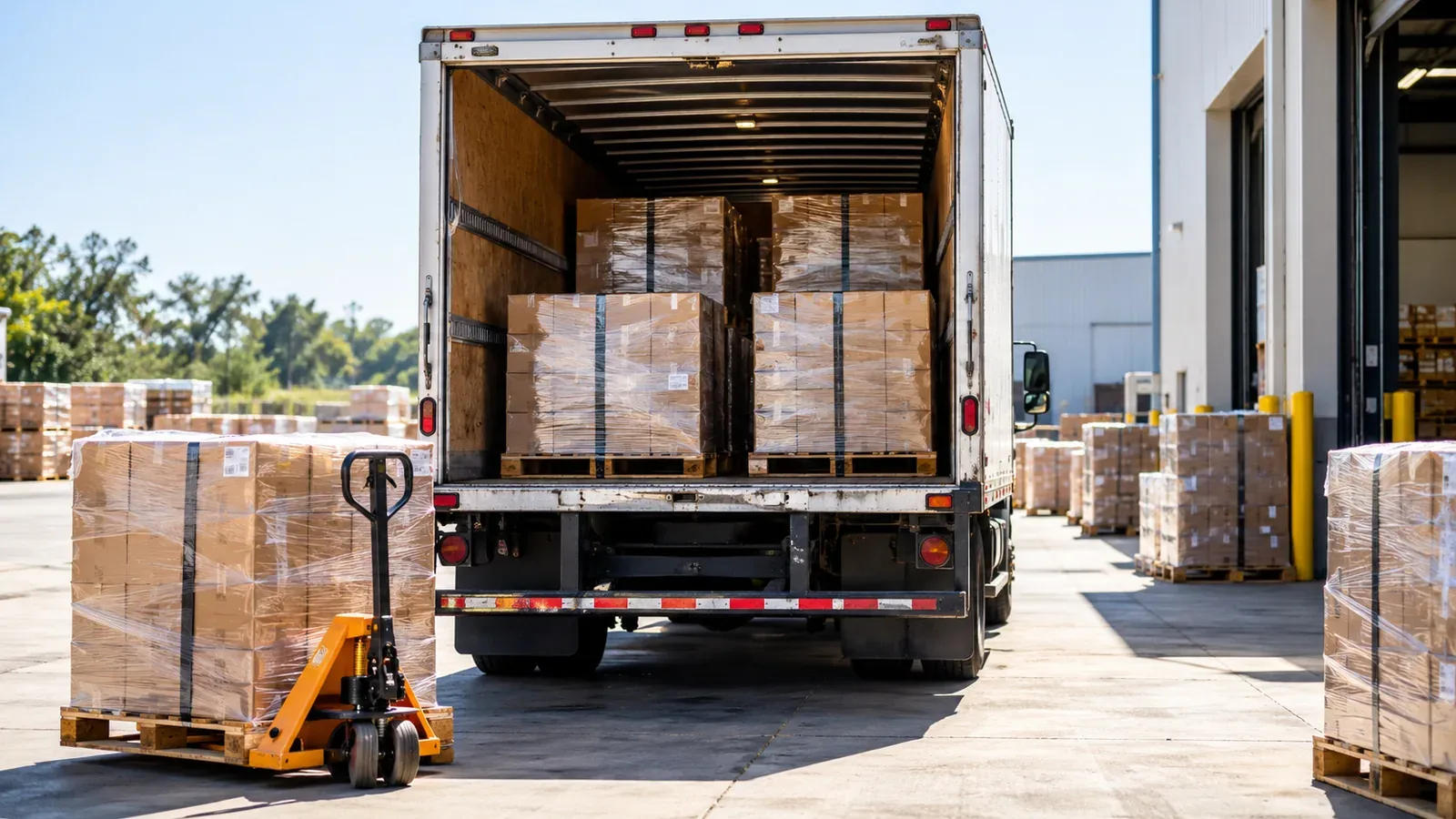

A pallet count on a truck listing is not a loading plan. Twelve pallets might fit neatly on a sketch and still be impossible to move through the rear door, too heavy for the rear axle, or impossible to restrain safely. If you deliver packaged goods, the useful question is not simply how many fit? It is how many can this specific truck carry, load, unload and secure on this route?
This guide builds the layout from real pallet dimensions, shows the arithmetic for three hypothetical truck interiors, and then tests those numbers against the limitations operators encounter at the dock. The examples are original calculations—not measurements of a particular rental fleet or promises about an advertised truck size.
Start with the pallet, not the truck
In US grocery and general merchandise distribution, the familiar 48 × 40-inch pallet is a useful baseline. CHEP lists 48 × 40 inches as the standard US footprint. It is a footprint, not a complete shipping-unit specification.
Before making a load plan, measure or obtain all four quantities:
- Pallet footprint: 48 × 40 inches for this example, with any wider pallet or product overhang recorded separately.
- Loaded height: goods and packaging above the pallet, including anything that must not touch the roof or door track.
- Loaded weight: combined pallet, wrap, packaging and product—not just the product’s net weight.
- Handling requirements: fork entry, pallet-jack turning space, liftgate platform, access to the next delivery and whether the load is safely stackable.
A load with cartons projecting two inches beyond each side of a nominal 40-inch pallet effectively occupies 44 inches, not 40. Two such units need at least 88 inches before clearance. That is why measuring the wrapped load often changes the answer more than choosing a truck with another foot of nominal body length.
Pallets in 16-, 20- and 26-foot box trucks: layout math
The following table deliberately uses hypothetical clear rectangular floors. The width and length are assumptions for teaching the calculation, not published dimensions for all trucks in each category.
| Example clear floor | Orientation on floor | Ideal positions | Practical qualification |
|---|---|---|---|
| 16 ft × 92 in | Two pallets with their 40-in sides across; four 48-in rows | 8 | Consumes all 192 in of length; no allowance for handling or restraint |
| 20 ft × 92 in | Two pallets with their 40-in sides across; five 48-in rows | 10 | Consumes all 240 in of length; not a delivery-ready commitment |
| 26 ft × 98 in | Two pallets with their 40-in sides across; six 48-in rows | 12 | Leaves 24 in of length before clearances and obstructions |
| 26 ft × 98 in | Rotate pallets: two 48-in sides across; seven 40-in rows | 14 | Only 2 in total width clearance in a perfect rectangle; often impractical |
Read those counts as geometric upper bounds under the stated assumptions. They do not establish that the truck has that much usable flat deck, enough weight capacity, an appropriate door, a rated liftgate, or a safe load restraint system.
The 16-foot calculation: why eight is not a promise
If you have 92 inches of genuinely unobstructed interior width, two 40-inch sides total 80 inches, leaving 12 inches of width to distribute around the loads. With the pallets’ 48-inch dimension running front to back, a 192-inch floor takes exactly four rows: 192 ÷ 48 = 4, or 4 × 2 = 8 positions.
But a pallet against the door can prevent the door from closing or leave no practical room for a retaining device; loading equipment and body fixtures also occupy space. For a first routing estimate, sketch three rows (six pallets), then measure whether a fourth is truly workable. Six is a suggested planning sketch, not a regulatory limit or standard rated capacity.
The 20-foot calculation: check the actual deck length
At a theoretical 240 inches of floor length, five rows of 48 inches give ten positions. Again, that leaves zero length for extra clearance. An alternative four-row sketch holds eight and leaves 48 inches to allocate to real constraints.
This is where many online pallet-count charts go wrong: advertised truck length and uninterrupted floor length are not interchangeable. In its rental-truck comparison, U-Haul publishes an interior length of about 19 ft 6 in for its 20-foot category, but separately lists a deck length of 16 ft 10 in. The distinction matters if the over-cab area is not useful flat floor for pallet handling. Those are provider-specific examples, not commercial box-truck standards.
On a genuinely usable 202-inch flat deck, four 48-inch rows require 192 inches, leaving only ten inches before door and restraint allowances. Do not promise eight pallets in that rental unit without inspecting the vehicle and its permitted loading method.
The 26-foot calculation: twelve versus fourteen
With a measured 312-inch flat deck and 98-inch clear width, a straightforward layout fits two 40-inch sides across and six 48-inch rows along the truck: 12 pallet positions, with 24 inches of length remaining in the ideal rectangle.
A rotated arrangement can draw 14 positions: two pallets with their 48-inch sides across require 96 inches; seven rows of 40 inches need 280 inches. But only two inches of total width remain in a 98-inch box. Packaging overhang, slightly skewed pallets, rails, interior taper and the need to actually position and restrain freight can invalidate that layout.
U-Haul’s general chart illustrates the risk of copying brochure numbers into a load plan: it reports a 26-foot interior measuring 26 ft 2 in long but separately identifies a 23 ft 5 in deck length. Its individual 26-foot specification page also differs slightly from the comparison chart on interior width. Check the actual truck, not either headline in isolation. See our guide to box truck sizes and usable dimensions.
A more useful worksheet than a single pallet-count claim
Make an actual floor sketch before dispatch. Work in inches; round down when calculating complete rows and columns.
| Measure or decision | Example entry | Why it matters |
|---|---|---|
| Clear, continuous floor length | 234 in | Not necessarily the marketed body length |
| Narrowest usable floor width | 91 in | Measure between obstructions |
| Rear-door clear opening | 87 in × 78 in | Every shipping unit must enter and exit |
| Wrapped pallet footprint | 48 in × 42 in | Packaging may overhang the nominal wood |
| Shipping-unit height | 64 in | Must clear door and interior hardware |
| Weight per loaded pallet | 820 lb | Includes pallet and packaging |
| Load/unload equipment | Pallet jack + rated liftgate | Confirm jack movement and platform dimensions |
| Restraint plan | Rated bars/straps as appropriate | Avoid movement and axle overload |
These dimensions are a fabricated training example, not a manufacturer’s truck specification. For the 48 × 42-inch wrapped loads, two 42-inch sides require 84 inches across a 91-inch clear box, leaving seven inches of shared width. Four rows of 48 inches require 192 inches of floor length, leaving 42 inches for all front/rear handling and securement needs. That creates a possible eight-position sketch—subject to physically verifying maneuverability, restraint and loading access.
The critical difference from a generic chart: this sketch was made from the actual shipping-unit footprint, and the remaining space is visible instead of hidden.
Weight can stop the load before the floor fills
Now consider an independent, hypothetical 20-foot delivery truck:
| Item | Illustrative weight |
|---|---|
| Certified GVWR | 16,000 lb |
| Ready-to-work scale weight | 10,300 lb |
| Driver and removable gear not present at weighing | 400 lb |
| Remaining gross-weight freight allowance | 5,300 lb |
16,000 − 10,300 − 400 = 5,300 lb. If each wrapped pallet weighs 820 lb, seven would total 5,740 lb, exceeding that gross-weight allowance; six total 4,920 lb, leaving 380 lb before any unaccounted items. The calculation must not deduct a driver or liftgate twice if that weight was already included on the scale ticket.
Even six pallets are not automatically approved: rear/front axle weights, tire ratings, body floor limits and where the pallets sit can impose tighter restrictions. You may need to weigh the loaded axles. A longer or larger-looking truck can have less available cargo weight than you expect. For a full method, see 26-foot box truck payload capacity.
Operating rule: Your allowable pallet count is the smallest number allowed by physical geometry, legal weight and component ratings, safe loading, cargo restraint and the customer’s unloading process.
The rear door is a separate measurement
An interior body might be 98 inches wide but have a substantially narrower roll-up door opening. That does not automatically rule out placing two pallets across the truck: they may enter one at a time and be positioned inside. It does rule out assuming they can pass through as a two-pallet-wide assembly.
Before dispatching a liftgate truck, check the width and height of the largest fully wrapped load against the door opening, the liftgate platform’s rated capacity, its usable depth, and whether the pallet jack can move the load safely. Also check the unloading location: a dock-high opening, sloped curb or restrictive driveway can change the equipment required.
A 1,500-lb pallet cannot be approved just because the truck has 5,000 lb of remaining gross-weight allowance. The liftgate may have a lower platform rating, an unsuitable load distribution, or no safe means to get the pallet from ground to floor. Get the equipment’s specific ratings, not a generic internet recommendation.
Load placement and securement: do not fill every rectangle
A perfectly full rectangle can be difficult to secure or unload. For covered commercial operations, FMCSA’s cargo securement rules require cargo to be restrained against movement, not just enclosed behind a roll-up door. Blocking, bracing, dunnage, shoring bars or suitable tiedowns may be part of a proper method depending on the freight and vehicle.
Practical checks include:
- Protect axle balance. Heavy pallets clustered at the rear can overload a rear axle while the overall vehicle remains below GVWR.
- Plan for each stop. The first pallet to unload should not be trapped behind freight that cannot be safely shifted on site.
- Leave clearance for restraint. Load bars or dunnage must be positioned as required; they are not magical space-free supports.
- Account for packaging and damage risk. Do not force products together to make a spreadsheet count work.
- Verify load distribution with actual weights. Never use a floor drawing as proof of axle compliance.
These checks matter just as much to a small local delivery business as to a larger carrier.
Should you double-stack pallets?
Double-stacking is a separate engineering and handling decision, not a way to convert eight floor positions into an automatic 16-pallet capacity. Confirm whether the product, packaging and lower pallets can withstand the imposed weight; whether the box has enough clearance; whether a forklift or lifting method is permitted and available; and whether the result can be restrained against shifting.
Some products are expressly marked do not stack. Some have fragile overhangs or unstable centers of gravity. A small number of floor positions may be safer and more valuable than a high theoretical stacked count.
Two dispatch situations with very different answers
Situation A — Eight light retail pallets. A distributor has eight wrapped, low-profile loads. The initial rectangle sketch fits them. The actual truck also has a large enough doorway, approved handling equipment and adequate freight allowance. After verifying axle loads and securement, the eight-position plan may be usable. The layout calculation was helpful—but only because the other checks passed.
Situation B — Eight heavy bottled-goods pallets. The identical geometric layout fits, but each pallet is dense. The truck reaches its legal gross or rear-axle limit after fewer units. The dispatcher should reduce the count or change equipment rather than assuming that physically fitting means legally carrying. Neither scenario describes a tested real-world fleet.
There is also an operational difference between a route with one warehouse unloading point and eight store deliveries. On a multi-stop route, sequence and accessibility can become the binding constraint well before floor area.
Before accepting a palletized box-truck load
Ask the shipper for pallet quantity, outer wrapped dimensions, gross weight per pallet, highest load height, stacking restrictions and loading method. Ask the carrier for actual flat-deck dimensions, clear door opening, scale weight and ratings, securement hardware and liftgate specifications. Confirm the unloading sites before quoting capacity.
If you operate multiple routes, save those measurements in a repeatable vehicle profile rather than re-estimating from advertised lengths every day. Compare the economics of making an additional run using the load profitability calculator and cost-per-mile calculator. For smaller freight, read cargo van versus box truck for delivery.
Editorial method and limitations
The pallet footprint comes from CHEP and the provider-specific moving-truck measurements from U-Haul. The 16-, 20- and 26-foot rectangular-floor calculations and both dispatch scenarios are independent worked examples, not capacities certified by CHEP, U-Haul or TheCarrierStandard for a particular vehicle. Measurements can differ between manufacturers, body builders and individual trucks. FMCSA’s published guidance supports the securement discussion, but it does not approve the illustrated pallet layouts. Final loading decisions require the specific truck’s ratings, an appropriate loading method and applicable federal/state rules.
