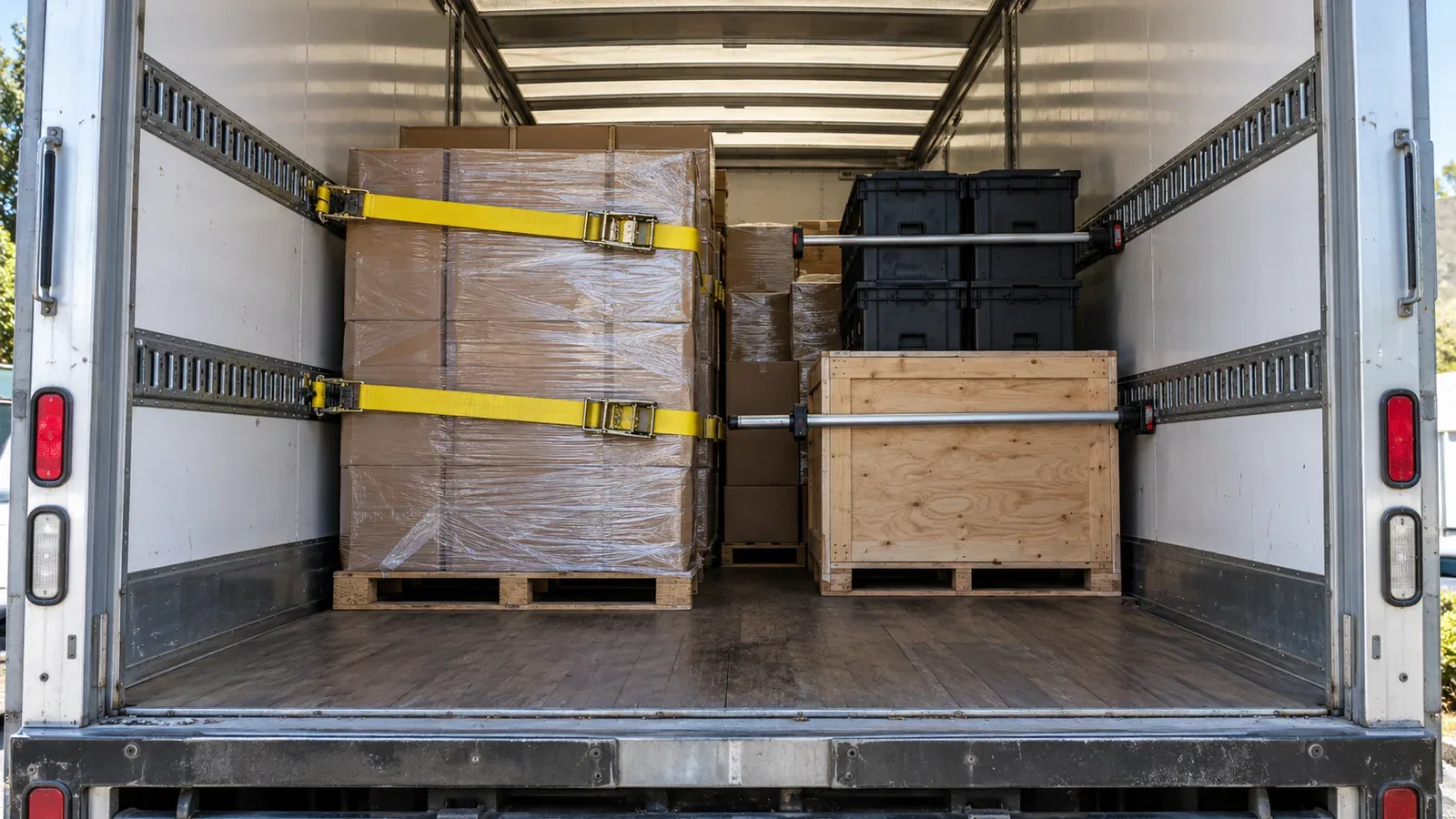

A delivery driver pulls up to a customer’s receiving dock, unlatches the box truck’s roll-up door and discovers that three wrapped pallets have crept backward during the trip. Nothing fell onto the highway. Yet the driver now has a door pressing against freight, a blocked unloading path and boxes that may be damaged. The truck had E-track along both walls—but no one actually used it.
This is the practical problem with cargo securement in a box truck: having a closed body and a few straps on board is not the same as having a load that cannot move dangerously. A suitable system starts with the freight, not with whatever equipment happens to be lying in the truck.
This guide explains how E-track, straps, load bars and blocking work together for typical US delivery operations. It also separates what FMCSA requires from useful operating practices. The examples are original, simplified planning illustrations—not an approval of a particular installation, a load-engineering certificate or a substitute for trained personnel and equipment instructions.
Quick answer: how should you secure a box-truck load?
For a typical palletized delivery, the sequence is:
- Confirm what is being carried. Obtain the total weight, dimensions, packaging, center of gravity and any movement or handling restrictions. Include pallets and handling gear when calculating vehicle payload.
- Check the truck. Verify usable payload and axle ratings, cargo floor, walls, rated attachment points, functioning doors and any liftgate restrictions.
- Choose a compatible restraint. Use sound, properly installed E-track with suitable straps or fittings; adequate blocking or shoring bars; dunnage; or another method permitted by the cargo rules.
- Account for every direction of movement. Consider emergency braking, acceleration, cornering, vibration, tipping and movement toward the rear doors.
- Verify ratings and placement. A WLL calculation is necessary when relying on tiedowns, but passing the arithmetic alone does not prove the system is safe.
- Inspect and document. Check the load before departure and during the trip as applicable; stop and correct problems instead of hoping the cargo will settle.
The legal starting point is 49 CFR 393.100: cargo in covered commercial vehicles must be contained, immobilized or secured to prevent dangerous shifting within the vehicle. The FMCSA’s cargo securement explanation expressly addresses movement within enclosed vehicles, not just freight falling off open trailers.
E-track, straps, load bars or blocking: what each piece actually does
The equipment is often sold as one “cargo control” category, but the parts perform different jobs. Choose the method for the failure you need to prevent.
| System | What it can do | What can go wrong |
|---|---|---|
| E-track rail and compatible fittings | Provides multiple attachment locations along a suitable truck wall or floor | Unrated, corroded or poorly fastened track can fail even when the strap is strong |
| Cam-buckle or ratchet logistic strap | Restrains freight movement when correctly routed, tensioned and anchored | A wrong fitting, sharp edge, weak anchor or slack strap defeats its rated capacity |
| Shoring bar / load bar | Braces cargo or separates bays when correctly fitted and rated | Wrong span, insufficient holding force, bent tubing or weak bearing surface lets it slip |
| Blocking and bracing | Fills or restrains gaps with appropriate structural support | Weak timber, crushed spacers or unverified wall strength can transfer damaging forces |
| Dunnage / void fillers | Limits movement and protects cargo in suitable applications | Packaging foam or loose filler is not automatically structural restraint |
| Pallet wrap or banding | Helps keep packages together on the pallet | A tight-looking pallet is still free to slide or tip across the truck floor |
Do not treat packaging as vehicle securement. Shrink wrap helps maintain a pallet’s integrity but does not establish that the whole loaded pallet is prevented from moving across the cargo bay.
E-track is a system, not a magic rating
E-track is the slotted steel rail commonly mounted horizontally or vertically inside vans and box trucks. Spring E-fittings, D-ring adapters, strap ends and some beam fittings can engage with the track. Horizontal tracks can make it easier to position a restraint near the freight rather than running a strap at a poor angle.
But there is no universal “E-track holds X pounds” figure. A rail’s advertised rating may not describe its installed strength in a particular box-truck wall. The load path includes the cargo contact, strap or bar, hardware, fitting, E-track, fasteners and vehicle structure. The relevant capacity depends on the actual components, attachment method and direction of loading.
For an illustration of why product-by-product checking matters, US Cargo Control lists a specific E-track strap kit with a stated 1,467-pound strap WLL. That is a product specification for that assembly, not permission to assign 1,467 pounds to any E-track fitting, rail, wall or differently branded strap. The installed system may have a lower allowable capacity.
Before using a system, identify the rail and fitting manufacturer, approved fasteners, mounting substrate, strap tag and the equipment’s operating instructions. If you cannot establish that the attachment is suitable, ask the equipment supplier or qualified installer before loading against it.
Cam buckle versus ratchet buckle
A cam buckle is often convenient for lighter packages that need controlled tension. A ratchet lets an operator tension a compatible strap more firmly when needed. Neither one is automatically the safer option. Excessive tension can damage cartons, crush a pallet or overload an attachment point; too little leaves the load free to move.
Inspect for cut or glazed webbing, damaged stitching, deformed hooks, bent fittings and a ratchet that cannot lock. Under 49 CFR 393.104, cargo securement devices must be in proper working order. The rule also prohibits knots in tiedowns and calls for edge protection where an abrasive or cutting contact would threaten the strap.
Shoring bars versus load bars
These names sometimes overlap in catalogs. Some bars lock into E-track fittings; others use friction pads or a ratcheting mechanism between walls. They do not all have identical capacity, approval or operating instructions. A floor-to-ceiling or side-to-side brace that slips when a forklift vibrates the truck is not a safe restraint simply because it feels tight by hand.
Look for the actual model and direction-of-load limits, correct installed span, positive locking (where specified), wall strength, and any prohibition on stacking cargo above the bar. When possible, keep a bar from becoming the sole defense against a heavy unstable load next to the rear door.
The DOT rules: what is mandatory for an enclosed box truck?
Federal requirements depend on whether the vehicle and operation are covered by the applicable commercial motor vehicle regulations; intrastate requirements and specific commodities can add considerations. For covered operations, a box-shaped enclosure does not waive the cargo securement rules.
Five regulations are especially useful when building or checking a restraint plan:
| Regulation | What to check in practice |
|---|---|
| 49 CFR 393.100 | Prevent cargo loss and movement that adversely affects vehicle stability or handling |
| 49 CFR 393.102 | Ensure the securement method satisfies performance criteria; adequate sided structures may count |
| 49 CFR 393.104 | Device condition, vehicle structures, no knots, edge protection and proper fastening |
| 49 CFR 393.106 | Immobilization, blocking, bracing and aggregate tiedown WLL |
| 49 CFR 393.108 and 393.110 | WLL calculation for tiedowns and, when applicable, the minimum tiedown count |
The full federal rule set also contains commodity-specific requirements. A box truck carrying certain machines, vehicles, logs, large rolls or other specialized freight should not rely solely on a generic pallet checklist. Confirm which requirements apply to that commodity and operation.
Are box-truck walls allowed to restrain freight?
Potentially. 49 CFR 393.102(c) recognizes cargo positioned in a sided vehicle with walls of adequate strength, provided cargo is close enough to the walls or other articles to prevent unacceptable movement or tipping. That is not an assumption that every plywood liner or rear roll-up door is a certified restraint.
The safest practical question is not “Does the truck have walls?” but “What happens when the load contacts those walls during a hard brake or turn?” A gap can let freight build speed before impact; a damaged panel can fail. Where strength or placement is uncertain, use a properly engineered additional restraint.
Working load limit (WLL): do the math without overcounting
Working load limit is not breaking strength. The latter describes a specified failure threshold. WLL is a service rating; tiedown assemblies are limited by their lowest-rated relevant component or anchor, as described by 49 CFR 393.108.
When tiedowns are used to secure an article or group of articles, 49 CFR 393.106(d) generally requires their aggregate credited WLL to be at least one-half the cargo’s weight. But not every strap contributes its full labeled WLL to that sum:
- From a truck anchor to the article: the rule credits one-half of that tiedown’s WLL.
- From a truck anchor, over/around the article, then back to an anchor on the same side: the rule likewise credits one-half of its WLL.
- From an anchor on one side, over/through/around the article, to an anchor on the other side: the rule credits the tiedown’s full WLL.
These are regulatory calculation conventions, not instructions to route straps in a mechanically unsuitable direction. Straps must actually restrain the relevant movement and be installed in accordance with the equipment instructions.
Worked example: a 2,400-pound palletized load
Imagine one 2,400-pound loaded pallet, with weight confirmed including the pallet, being evaluated for a tiedown-based restraint. The minimum aggregate credited WLL under the one-half-weight test is 1,200 pounds. The pallet is assumed to be approximately four feet long and is not positively blocked in the forward direction.
| Illustrative strap arrangement | Assumed verified assembly WLL | Credited aggregate WLL | Half-weight test |
|---|---|---|---|
| Two proper cross-vehicle tiedowns, each running from one side to the other over the article | 1,000 lb each | 2 × 1,000 = 2,000 lb | Meets the 1,200-lb arithmetic threshold |
| Two direct tiedowns, each from a vehicle anchor to an attachment on the article | 1,000 lb each | 2 × 500 = 1,000 lb | Fails the 1,200-lb threshold |
| Three such direct tiedowns | 1,000 lb each | 3 × 500 = 1,500 lb | Meets the arithmetic threshold only |
Important: the 1,000-pound WLL values are hypothetical verified assembly ratings, not recommendations for a product or this pallet. The arithmetic does not establish that the pallet has usable attachment points, that the straps’ routing prevents tipping, or that the truck’s installed rails can safely take the loads. Packaging can crush under a strap. An appropriate system must satisfy all relevant criteria, not merely pass the half-weight test.
Minimum number of tiedowns is a separate question
49 CFR 393.110 specifies minimum tiedown counts when tiedowns are used, based on article length, weight and forward blocking. Without effective forward blocking, an article five feet or less and 1,100 pounds or less generally requires at least one; an article five feet or less but heavier than 1,100 pounds, or over five through ten feet, generally requires at least two. Longer articles can require more.
When an article is properly blocked, braced or immobilized against forward movement, the rule instead calls for at least one tiedown for each ten feet or fraction of article length if tiedowns are part of the securement system. The WLL and actual restraint requirements still apply. Do not conclude that every four-foot pallet always needs exactly two straps—or that a bar can be substituted for a tiedown without checking the method’s performance.
For the hypothetical four-foot, 2,400-pound pallet that is not forward-blocked, at least two tiedowns would apply under the general tiedown-count provision if a tiedown system is used. Even two straps with enough calculated WLL can be inadequate in a real truck if the pallet can tip, move sideways or break apart.
How to position pallets in a 16-, 20- or 26-foot box truck
A body-length label does not tell you where cargo can safely sit. Your actual wheelbase, axle loads, floor strength, door opening, cargo mass and equipment condition determine the arrangement. To estimate how many pallets physically fit, start with our box-truck pallet layout guide. The securement plan then answers a different question: how do those pallets stay where you put them?
A small fleet’s loading sequence can follow this practical order:
- Weigh or document each pallet. Identify unusually dense machinery, liquids or high-center-of-gravity items separately.
- Map the loading positions. Keep left-right balance in mind and avoid placing all heavy freight at the tail. A centerline sketch helps, but actual axle compliance requires the truck’s ratings and weighing where appropriate.
- Inspect the cargo bed. Clear debris, repair insecure decking and check rail mounts and anchor points before a forklift arrives.
- Position stable heavy cargo low. Use fit-for-purpose blocking, adequate structures or restraints for fore-aft and sideways movement. Avoid leaving uncontrolled gaps.
- Restrain each independent group. If one pallet is delivered early, the remaining pallets still need a valid restraint after the stop.
- Check opening and handling clearance. A strapped pallet that blocks the roll-up door or liftgate access creates another hazard.
- Reassess after a partial unload. Move, replace or retension restraints according to the new load geometry before driving again.
Pay special attention to the weight and placement of a pallet jack or portable loading equipment. The jack may be extra freight weight and also a rolling object that needs its own restraint. For unloading limits, see box-truck liftgate capacity and safe pallet handling. For the larger vehicle limit, use the 26-foot box-truck payload worksheet.
Three practical loading scenarios
The examples below are representative decision scenarios, not witnessed incidents or manufacturer-approved securement plans. They are intended to show which question should be asked next—not to authorize a particular number of straps.
Scenario 1: three shrink-wrapped pallets on a multi-stop delivery
Problem. A 20-foot box truck carries three normal-sized pallets to three addresses. Each pallet is tightly wrapped, but they are separated by several feet of empty floor.
Contratiempo. After the first delivery, the remaining two pallets no longer have adjacent cargo providing any forward support. The original layout depended on cargo touching cargo.
Practical response. Identify what restrains the remaining pallets after every stop. Use an appropriate independent restraint or reconfigure approved blocking before departure. Add a repeatable post-delivery inspection to the driver’s routine.
Lesson. A securement plan for the first stop is not necessarily safe after partial unloading.
Scenario 2: a tall cabinet riding next to an E-track wall
Problem. A wrapped cabinet is narrow, tall and relatively heavy near its top. A driver clips a single strap halfway up the box and assumes it cannot move.
Contratiempo. The cabinet may still rotate or tip even if the strap’s labeled WLL exceeds the cabinet’s weight.
Practical response. Verify packaging strength, center of gravity, manufacturer handling instructions and the geometry of restraints against both sliding and tipping. Use suitable protective contact points rather than crushing unsupported paneling with a tight ratchet.
Lesson. A WLL number alone does not prove stability.
Scenario 3: the last pallet is pushed against the rear door
Problem. The cargo bay looks full, so a crew treats the roll-up door as the final brace.
Contratiempo. When the door is raised, freight can fall outward or place unexpected force on the operator. A door’s ability to close is not an engineering certificate for load restraint.
Practical response. Use a suitable independent restraint rated and positioned for the freight; check the door clearance and approach the unload from a safe location in line with site procedures.
Lesson. Never rely on a loading-door closure as the only assurance that freight will stay put.
When to inspect cargo: before departure, first 50 miles and en route
A load that passed inspection at the warehouse can change as straps settle, boxes compress, or freight is removed. 49 CFR 392.9 places specific responsibilities on covered drivers and carriers.
For covered truck drivers, the provision calls for assurance of proper securement before driving; inspection and necessary correction within the first 50 miles; and later rechecks at a change of duty status, three hours of driving, or 150 miles, whichever occurs first. These are triggering conditions in the regulation, not a suggestion to wait until the longest interval.
Important exception: paragraph 392.9(b)(4) exempts the driver’s inspection requirements in paragraph (b) when the truck is sealed and the driver has been ordered not to open it, or when the manner of loading makes inspection impracticable. It does not excuse unsafe loading under paragraph (a). Shippers and carriers still need a compliant loading and accountability process.
A practical routine is to record the origin inspection, restraint condition, changes after each stop, and any corrective action. A photograph can aid internal communication but does not substitute for inspection or prove that an assembly has the necessary WLL.
A driver’s pre-departure securement checklist
Use these questions before closing the box. They supplement—but do not replace—the applicable inspection rules and the exact equipment manuals.
| Check | Ask before moving |
|---|---|
| Freight identification | Have I confirmed actual mass, center of gravity, dimensions and special handling needs? |
| Vehicle limits | Are payload and axle ratings respected, with the load distributed appropriately? |
| Enclosure | Are floor, walls, rail mounts and doors in suitable condition for the method being used? |
| Anchors and components | Do I know the compatible fittings and relevant WLL, including the weakest link? |
| Restraint method | Does the arrangement resist forward, rearward, lateral and tipping movement? |
| Tiedown arithmetic | If using tiedowns, does the credited aggregate WLL and applicable tiedown count meet the rules? |
| Edges and tension | Are straps undamaged, free of knots, adequately tensioned and protected at cutting edges? |
| Rolling equipment | Are pallet jacks, dollies and other mobile items separately secured? |
| Door zone | Can the rear opening be operated without cargo falling toward the operator? |
| Stops and inspections | Is there a safe plan to inspect and resecure after the first delivery and during the trip? |
The highest-value habit is to make the final person who signs off the load explain why it cannot move—not merely point at the number of straps. If the answer depends on an unknown rail rating, an unverified wall or the rear door holding a pallet in place, the plan needs work before the truck leaves.
Where securement affects your delivery business
Cargo control is also an operating-cost issue, but that does not make it an optional extra. A poor plan can cause damaged merchandise, rework at a receiving dock, late deliveries and disputed claims. The costs of compatible straps, inspected rails and sensible loading time need to be reflected in route pricing.
Use the box-truck operating cost breakdown to account for load-preparation labor and equipment upkeep; the load profitability calculator helps model a delivery’s total economics. Neither tool substitutes for a safety assessment.
When deciding between truck lengths, see box-truck sizes compared: a larger cargo box may create more available floor space, but also more empty space that needs effective control when running a partial load. A smaller truck does not automatically make a heavy pallet safer either. Fit, legal weight, restraint and unloading are four separate decisions.
Bottom line
To secure cargo in an enclosed box truck, use a verified load-specific method, not a one-size-fits-all strap count. E-track can provide flexible attachment points, but only when its rails, fittings and mounting are fit for the intended load. Load bars and bracing can help immobilize freight, while tiedowns must meet applicable strength and count rules. Recheck the arrangement after stops and during covered trips.
If a shipper cannot provide reliable weight or handling information, or the truck’s anchor ratings and installation are unknown, stop and obtain the facts. The cheapest time to correct a load is before it is driving down the highway.
